เซรามิคไฟเบอร์ HIGH TEMP INSULATION

ฉนวนกันความร้อนสูง

รายละเอียด High Temperature Insulation

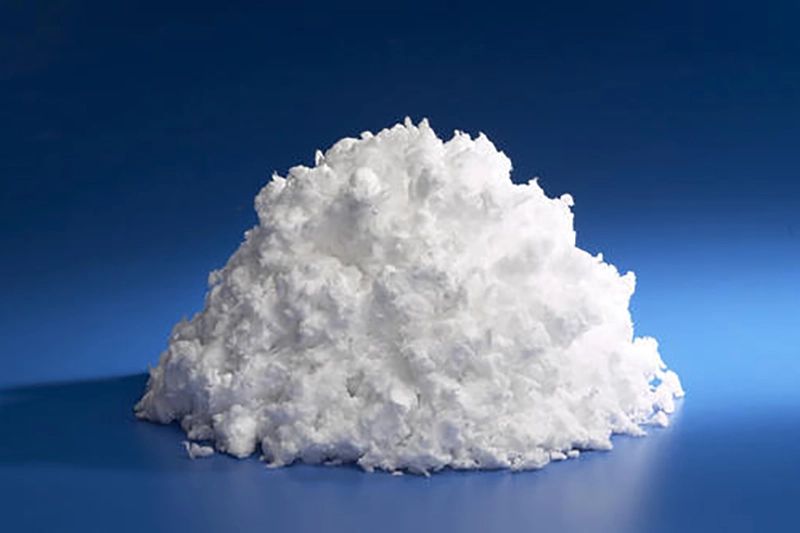

Ceramic Fiber Bulk

TEMPERATURE

1260 C, 1400 C

DENSITY

96-192 KG/M3 STANDARD SIZE : 10 KGS / Bags 20 KGS / Bags

APPLICATION

Expansion joint, fire protection Penetration seals, fire door infill, papers Boards, and vacuum forming.

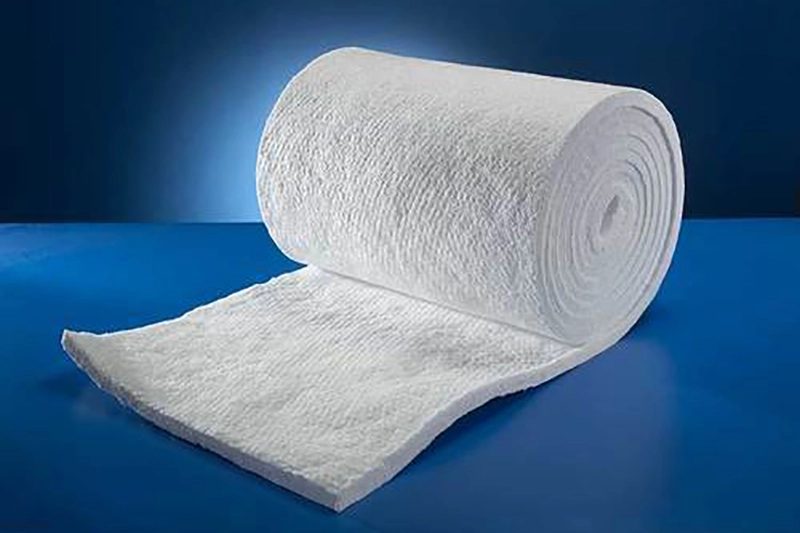

Ceramic Fiber Blanket

TEMPERATURE

1260 C, 1400 C

DENSITY

96 , 128 , 160 (KG/M3)

STANDARD SIZE

25x610x7, 200 mm. 50x610x3, 600 mm.

Application

Insulation of ducts, chimneys Domestic appliances, fire protection application Furnace, kiln and process heater linings.

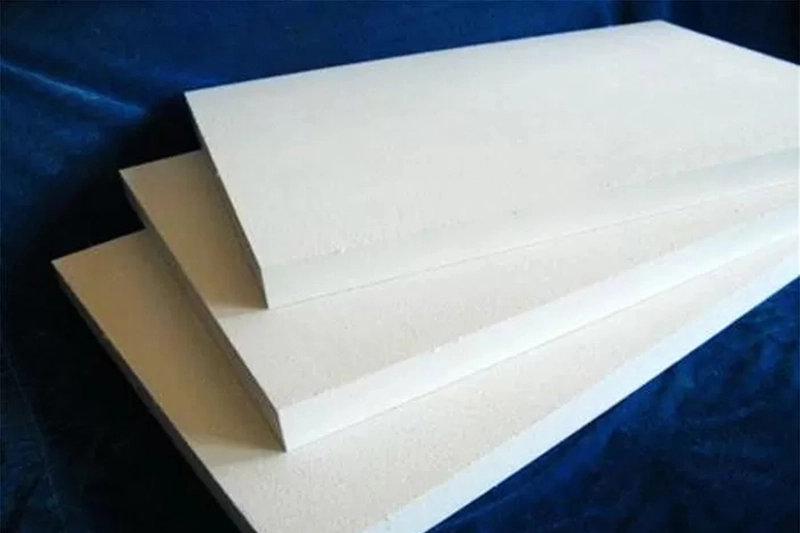

Ceramic Fiber Board

TEMPERATURE

1260 C, 1400 C

DENSITY

300 KG/M3

STANDARD SIZE

25x600x900 mm. 50x600x900 mm.

Application

Domestic and appliance boilers, linings, gaskets, glass tank insulation. Refractory back-up, Fire protection system.

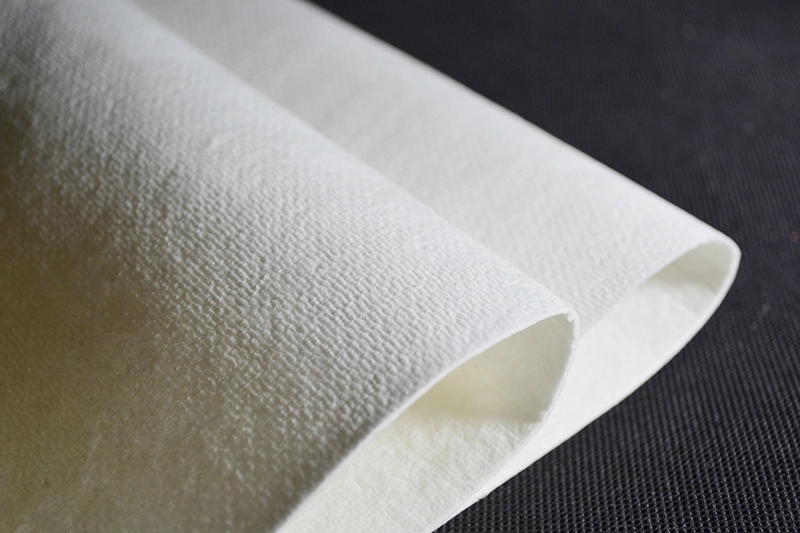

Ceramic Fiber Paper

TEMPERATURE

1260 C, 1400 C

DENSITY

200 KG/M3

STANDARD SIZE

25x600x900 mm. 50x600x900 mm.

Application

Domestic and appliance boilers, linings, gaskets, glass tank insulation. Refractory back-up, Fire protection system.

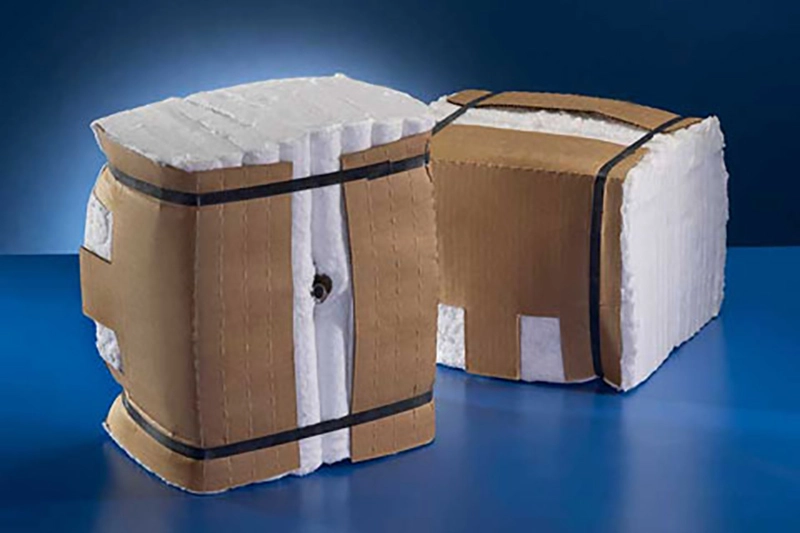

Ceramic Fiber Z-Block Modules

TEMPERATURE

1260 C, 1400 C

DENSITY

96-192 KG/M3

STANDARD SIZE

10 KGS / Bags 20 KGS / Bags

Application

Lining of furnace, kiln, process Heater ducts, stack and ladle covers, Hot face Layer on existing or new refractory linings.

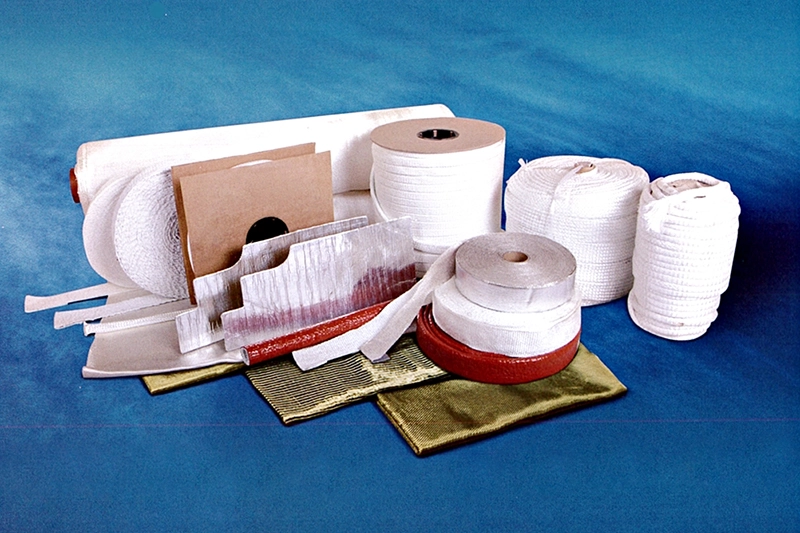

CERAMIC FIBERS TEXTILES

TEMPERATURE

1260 C

DENSITY

N/A

STANDARD SIZE

Fiber braided packing Twisted rope – round

Application

Fire protection systems, gasket Furnace curtains, welding curtains, pipe wraps Door seals, furnace seals, personal protection.

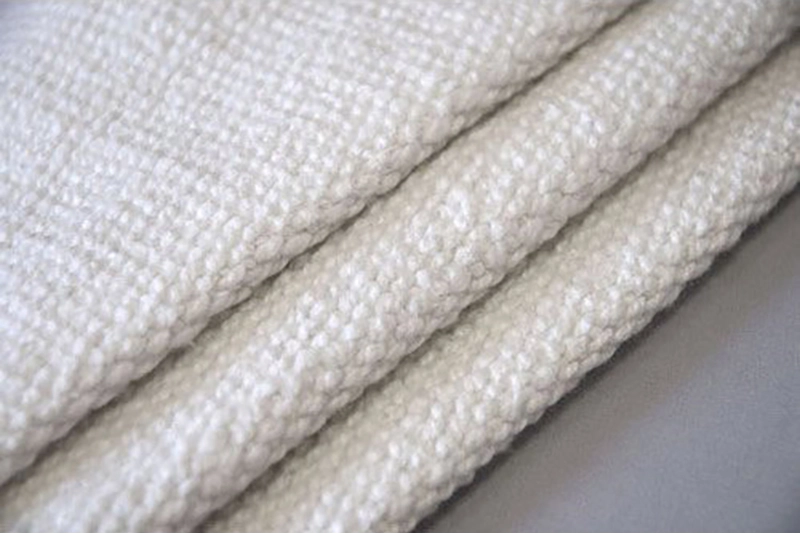

CERAMIC FIBER CLOTH

TEMPERATURE

1260 C

STANDARD SIZE

Thk 1,000 –1,500 mm Width 2.0 – 6.0 mm Length 30 M/Roll

Application
  • Heat insulation curtain
  • Large area thermal insulation
  • Radiant heat shielding
  • Flexible fabric expansion joints.

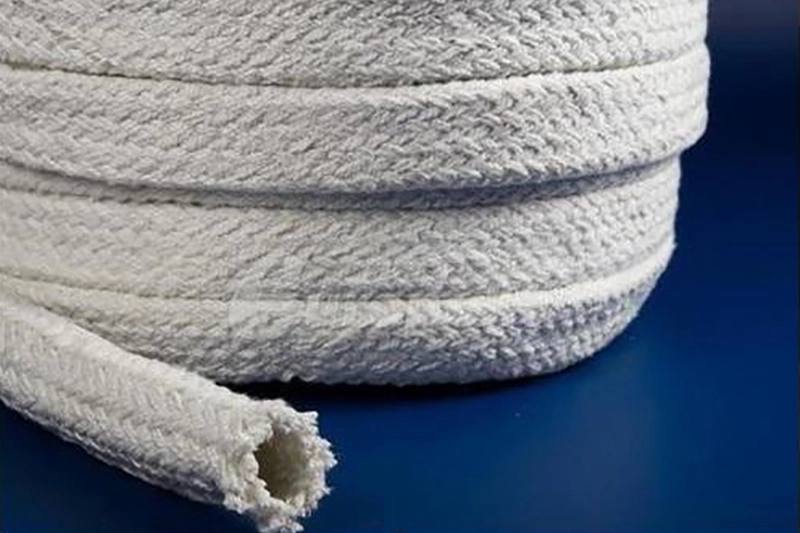

CERAMIC FIBER SLEEVIN

TEMPERATURE

1260 C

STANDARD SIZE

Dia 8-60 mm, (L) 30 M/Roll

Application
  • High temperature resistant, electrical cable, wire covering
  • High temperature pipe wrapping

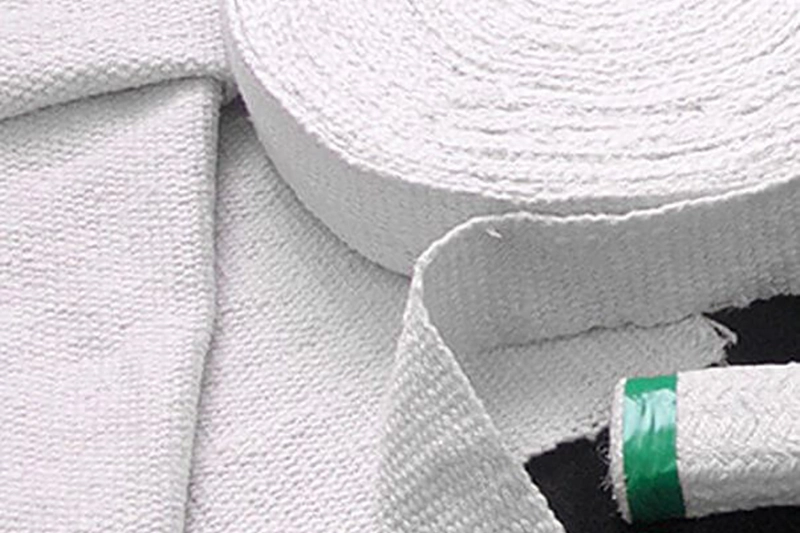

CERAMIC FIBER TAPE

TEMPERATURE

1260 C

STANDARD SIZE

Thk 2-5 mm, Width 10-150 mm Length 30 M/Roll

Application
  • High temperature resistant, electrical cable, wire covering
  • High temperature pipe wrapping

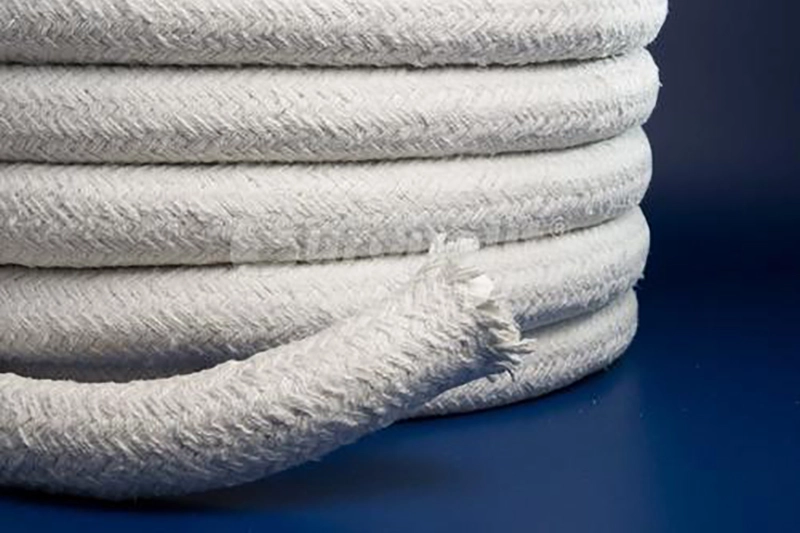

CERAMIC FIBER TAPPOLE

TEMPERATURE

1260 C

STANDARD SIZE

Custom Sizes

Application
  • Sealing on height metal flange
  • Suited for application where closures rest on the packing bulb

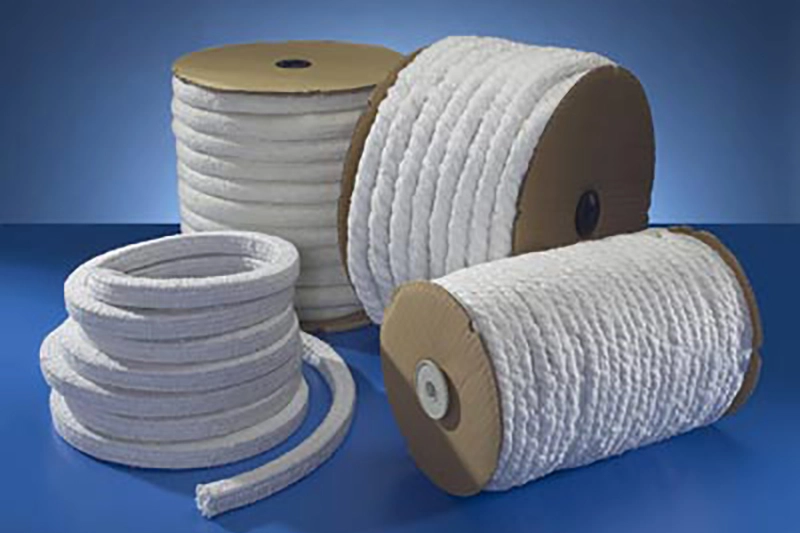

CERAMIC FIBER ROPE

TEMPERATURE

1260 C

STANDARD SIZE

• Dia 5-12 mm x 100 M/Roll • Dia 15-25 mm x 50 M/Roll • Dia 30 mm x 25 M/Roll • Dia 40 mm x 20 M/Roll • Dia 50 mm x 10 M/Roll

Application

- Thermal insulation and sealing for stove, kiln car

SILICA FABRIC

TEMPERATURE

1000 C

STANDARD SIZE

STANDARD SIZE : Thk 0.2-1.5 mm Width 1,000-1,500 mm Length 50 M/ Roll

Application
  • Stress relief blankets, Fire protection
  • Furnace insulation and cable wrap, High temperature gasket
